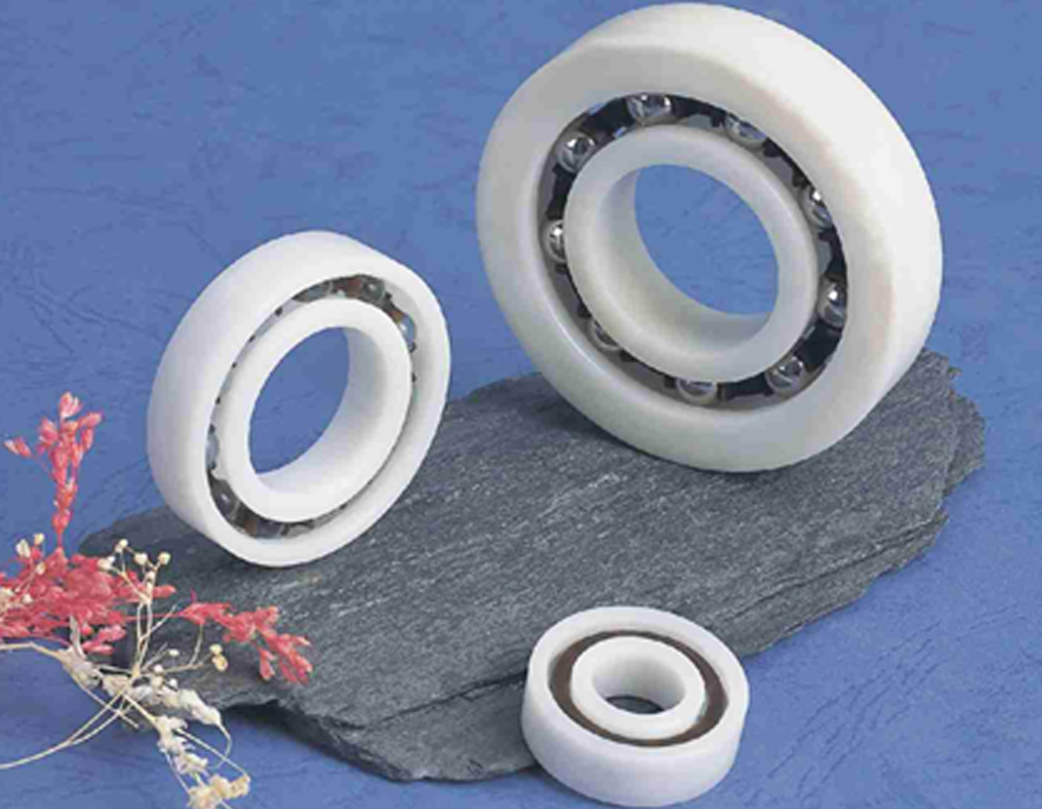

| Full plastic bearings
with higher precision and
excellent
resistance to corrosion capacity,the inner and outer rings are made from plastic
material,the balls are made from glasses or stainless steel materials.
The application is very wide. |
|
| |
| |
Part
Number |
d(mm)
+0.05
-0 |
D(mm)
+0
-0,05 |
W(mm)
+0
-0.12 |
Internal
Clearance
(µm) |
Static
load (N) |
Dynamic (N) |
Max Speed rpm |
Gross
Weight
(KG) |
| 6000 |
10 |
26 |
8 |
25-45 |
9.0 |
13.0 |
2300 |
0.002 |
| 6001 |
12 |
28 |
8 |
|
11.0 |
16.0 |
2100 |
0.003 |
| 6002 |
15 |
32 |
9 |
|
13.0 |
19.0 |
1800 |
0.005 |
| 6003 |
17 |
35 |
10 |
|
17.0 |
24.0 |
1700 |
0.008 |
| 6004 |
20 |
42 |
12 |
|
20.0 |
30.0 |
1500 |
0.012 |
| 6005 |
25 |
47 |
12 |
|
24.0 |
36.0 |
1250 |
0.037 |
| 6006 |
30 |
55 |
13 |
|
28.0 |
42.0 |
1100 |
0.024 |
| 6007 |
35 |
62 |
14 |
|
32.0 |
48.0 |
1000 |
0.031 |
| 6008 |
40 |
68 |
15 |
|
35.0 |
52.0 |
900 |
0.035 |
| 6009 |
45 |
75 |
16 |
|
38.0 |
56.0 |
800 |
0.053 |
| 6010 |
50 |
80 |
16 |
|
39.0 |
58.0 |
700 |
0.062 |
| 6011 |
55 |
90 |
18 |
|
40.0 |
60.0 |
650 |
0.084 |
| 6012 |
60 |
95 |
18 |
|
42.0 |
64.0 |
600 |
0.091 |
| 6200 |
10 |
30 |
9 |
|
13.0 |
17.0 |
2000 |
0.006 |
| 6201 |
12 |
32 |
10 |
|
15.0 |
22.0 |
1850 |
0.007 |
| 6202 |
15 |
35 |
11 |
|
17.0 |
25.0 |
1700 |
0.009 |
| 6203 |
17 |
40 |
12 |
|
22.0 |
32.0 |
1500 |
0.013 |
| 6204 |
20 |
47 |
14 |
|
27.0 |
42.0 |
1250 |
0.022 |
| 6205 |
25 |
52 |
15 |
|
32.0 |
48.0 |
1200 |
0.026 |
| 6206 |
30 |
62 |
16 |
|
36.0 |
55.0 |
950 |
0.044 |
| 6207 |
35 |
72 |
17 |
|
41.0 |
62.0 |
850 |
0.060 |
| 6208 |
40 |
80 |
18 |
|
44.0 |
66.0 |
750 |
0.075 |
| 6209 |
45 |
85 |
19 |
|
47.0 |
72.0 |
700 |
0.093 |
| 6210 |
50 |
90 |
20 |
|
54.0 |
77.0 |
650 |
0.11 |
| 6211 |
55 |
100 |
21 |
|
60.0 |
80.0 |
600 |
0.13 |
| 6212 |
60 |
110 |
22 |
|
63.0 |
88.0 |
550 |
0.17 |
| 6300 |
10 |
35 |
11 |
|
19.0 |
28.0 |
1700 |
0.010 |
| 6301 |
12 |
37 |
12 |
|
21.0 |
31.0 |
1550 |
0.012 |
| 6302 |
15 |
42 |
13 |
|
26.0 |
37.0 |
1450 |
0.017 |
| 6303 |
17 |
47 |
14 |
|
30.0 |
45.0 |
1250 |
0.024 |
| 6304 |
20 |
52 |
15 |
|
35.0 |
53.0 |
1150 |
0.031 |
| 6305 |
25 |
62 |
17 |
|
40.0 |
60.0 |
900 |
0.048 |
| 6306 |
30 |
72 |
19 |
|
46.0 |
70.0 |
800 |
0.077 |
| 6307 |
35 |
80 |
21 |
|
49.0 |
75.0 |
700 |
0.092 |
| 6308 |
40 |
90 |
23 |
|
51.0 |
82.0 |
650 |
0.12 |
| 6309 |
45 |
100 |
25 |
|
54.0 |
90.0 |
600 |
0.18 |
| 6310 |
50 |
110 |
27 |
|
58.0 |
97.0 |
500 |
0.24 |
|
| |
| |
|
|
|
|
