Products

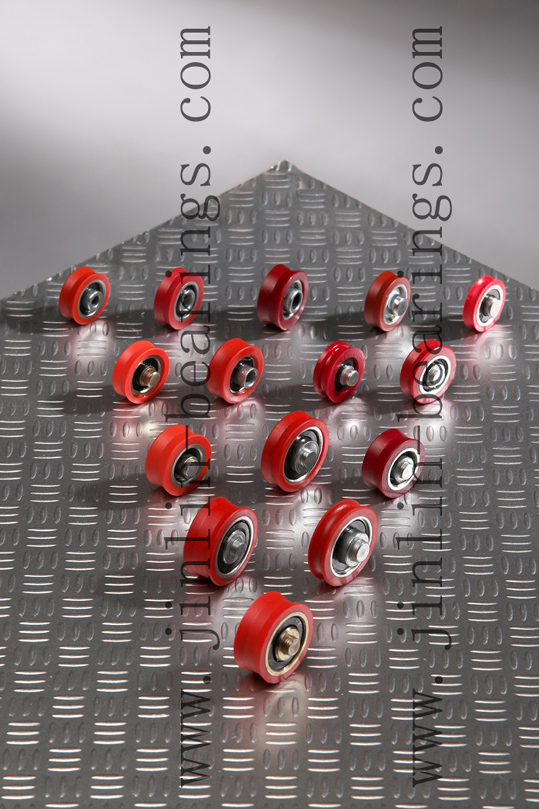

Window rollers

1) Plastic pulley outer ring is made of plastic materials (POM, PP, PA, nylon), with excellent surface for sliding windows and doors
2) Inner ring is made of brass or carbon steel with zinc/brass plated, with excellent resistance to corrosion capacity
3) Color of plastic outer ring: according to customers' requirements
4) With long life performance

Dimension(mm)								Ball
Bearings No.	D	d	F	B	A	L	a	No.	Dia
VS21136	21	5	19	8	8.6	13.6	150	6	1/8
VS21108	21	6	19.4	7	7.6	10.8	150	6	1/8
VS2111	21	6	20	7	7.5	11	156	6	1/8
VS21138	21	6	20	7	7.5	13.8	156	6	1/8
VS21155	21.5	6	20	8	10.5	15.5	156	6	1/8
VS2214	22	6	20	7.3	8	14	150	6	1/8
VS2212	22	6	20	9	9.4	12	150	6	1/8
VS22145	22	6	20	9	9	14.5	150	6	1/8
VS22158	22	6	20	9	9.4	15.8	150	6	1/8
VS22157	22	6	20	9	9.8	15.8	150	6	1/8
VS2216	22	6	20	8	-	16	150	6	1/8
VS3018	30	7	27.8	11	-	18	156	7	5/32
VS19115	19.5	4	17.7	7	-	11.5	150	6	1/8
VS2012	20.5	5	18.6	7	-	12	150	6	1/8
VS2075	20.8	5	19.4	7	-	7.5	156	7	1/8
VK2107	21	5	20	7	-	7	156	6	1/8
VK2175	21	5	20.4	7	-	7.5	156	6	1/8
VK22113	22	6	20	9	-	11.3	150	7	1/8
VK22112	22	6	20	9	-	11.3	156	6	1/8
VK2211	22	6	20	10	-	11	156	6	1/8
VK22114	22.4	6	20	9	-	11.3	150	7	1/8
VK2712	27.3	6	25	11	-	12	156	7	5/32
VK3013	30	7	28	12	-	13	156	7	5/32
